Face Capture

The Mobile ID SDK provides a functionality that simplifies the process of obtaining a frame for biometry checks. To achieve it, we use face detection technology, and capture a frame with the user’s face. The live photo is then processed and checked against a liveness algorithm that will try to detect specific characteristics of spoofing attempts, returning a score that indicates if the person using the app is there or trying to impersonate someone else.

Initiate Face Capture

The Mobile ID SDK provides a complete set of functionalities that allows capturing and processing the user’s facial characteristics, and match them against the travel document’s photo. This helps ensuring that the user who is enrolling is the document’s owner. The biometric face capture should be the final step before creating a Digital ID in a remote system. If you only need to capture a frame with the user’s face for biometric quality validation and check against liveness algorithms, you can use the method biometricFaceCapture.

AndroidiOS

/**
 * Uses the device camera to capture a photo of the user face (selfie).
 *
 * Some tests will be run against this photo to ensure the photo quality and a liveness check verification.
 *
 * @param activity [Activity] that will launch the face capture feature
 * @param params [BiometricFaceCaptureParameters] configurations parameters.
 * @param onFaceCaptureComplete [OnBiometricFaceCaptureCompletion] Callback to handle Success and Error scenarios.
 */
fun biometricFaceCapture(
    activity: Activity,
    params: BiometricFaceCaptureParameters,
    onFaceCaptureComplete: OnBiometricFaceCaptureCompletion,
)

/// Uses the device camera to capture a photo of the user face (selfie). Some tests will be run against this photo to ensure the photo quality and a liveness check verification.
/// - Parameters:
///   - parameters: Configures the check liveness step.
///   - viewController: View controller that will present the face capture views.
///   - completionHandler: The completion handler to call when the face capture feature is finished.
///     This completion handler takes the following parameter:
///
///     Result<BiometricFaceCaptureReport, BiometricFaceCaptureError>
///     Where `BiometricFaceCaptureReport` contains  the results of the face capture
///     operation and `FaceCaptureReportError` the possible errors that may occur during the process.
    func biometricFaceCapture(parameters: BiometricFaceCaptureParameters, viewController: UIViewController, completionHandler: @escaping (Result<BiometricFaceCaptureReport, FaceCaptureReportError>) -> Void)

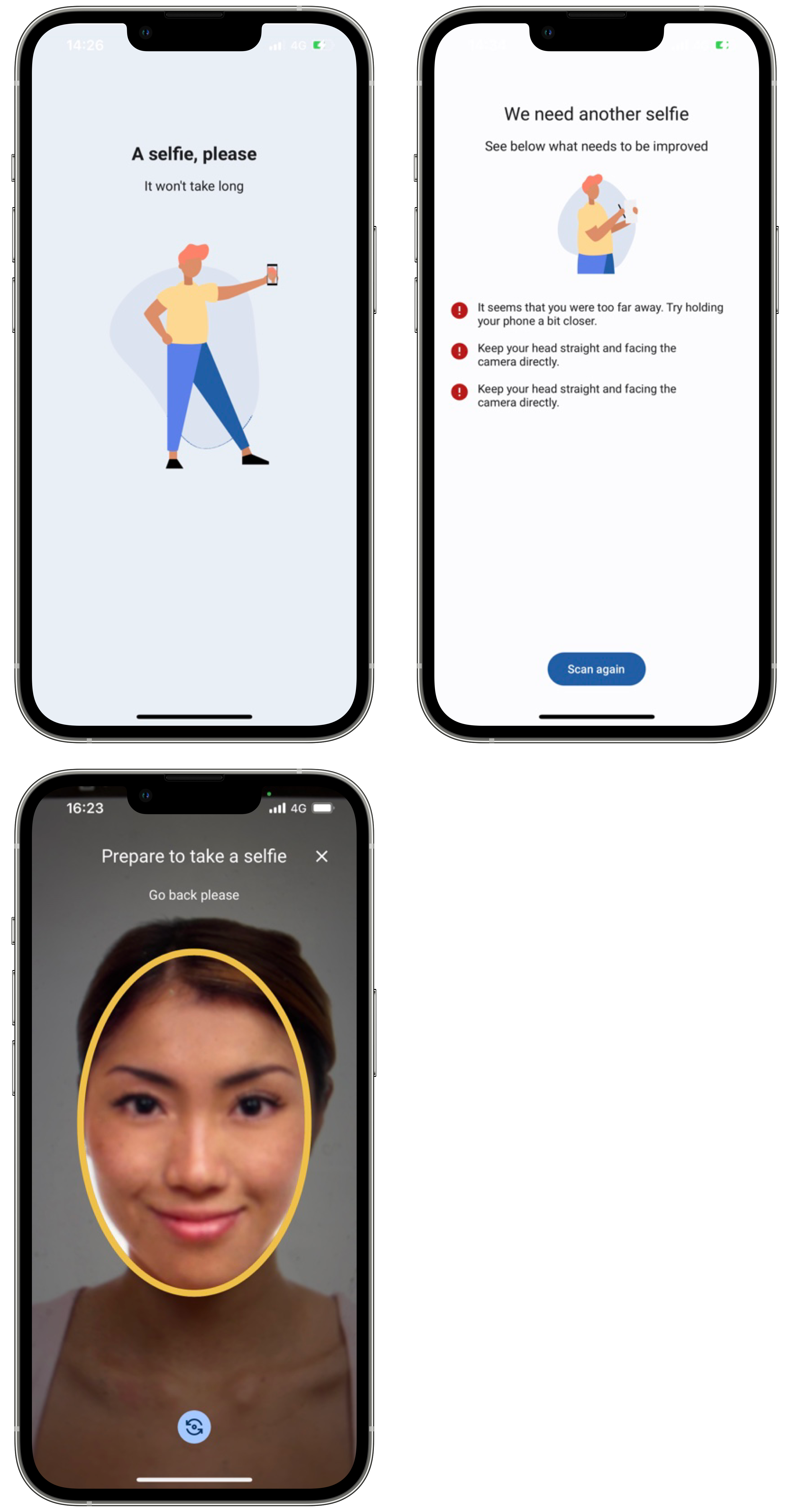

The SDK provides UI solutions for the capture process, as shown in the images below. Below is an example of the BiometricFaceCaptureParameters:

AndroidiOS

data class BiometricFaceCaptureParameters(
    val frameFormat: FaceCaptureFrameFormat = FaceCaptureFrameFormat.OVAL,
    val cameraConfig: CameraConfig,
    val faceCaptureTimeout: Long? = null,
    val compressFormat: CompressFormat = CompressFormat.PNG
)

Now it's also possible to pass the compress format for the resulting biometric face photo format.

It defaults to PNG but it's possible to pass other formats such as JPEG.

The FaceCaptureFrameFormat is an enum that shapes the frame where the face must be centered to take the selfie. Currently it has two options:

enum class FaceCaptureFrameFormat {
    @Deprecated(message = "SQUARE shape will be removed in the next major release", replaceWith = ReplaceWith("OVAL"))
    SQUARE,
    OVAL
}

The CameraConfig is another data class that lets your configure the visibility of the toggle button and change the camera direction (Front or Back).

data class CameraConfig( val enableCameraToggle: Boolean, val defaultCamera: CameraSelector, )

public struct BiometricFaceCaptureParameters {
    public let frameShape: BiometricFaceCaptureFrameOptions
    public let cameraConfig: CameraConfig
    public let faceCaptureTimeout: TimeInterval?

    public init(frameShape:BiometricFaceCaptureFrameOptions = .oval,
            cameraConfig: CameraConfig = CameraConfig(),
            faceCaptureTimeout: TimeInterval? = nil)

The BiometricFaceCaptureFrameOptions is an enum that shapes the frame where the face must be centered to take the selfie. Currently it has two options:

public enum BiometricFaceCaptureFrameOptions {
    case oval
    @available(*, deprecated, message: "Will be removed in future versions (9.x)")
    case square
}

The CameraConfig is an enum that struct the frame where the face must be centered to take the selfie. Currently it has two options:

public struct CameraConfig {
    public let toggleCameraEnable: Bool
    public let defaultCamera: AVCaptureDevice.Position

    public init(toggleCameraEnable: Bool = true,
            defaultCamera:AVCaptureDevice.Position = .front) {
        self.toggleCameraEnable = toggleCameraEnable
        self.defaultCamera = defaultCamera
    }
}

This function is used to acquire a high-resolution selfie with a 9:7 aspect ratio. The photo will only be taken if the frame conforms to specific parameters that make sure the face is centered and not too far away, or too close.

Handle Result

AndroidiOS

You can get the result by registering the callback:

interface OnBiometricFaceCaptureCompletion {
    fun onBiometricFaceCaptureSuccess(faceCaptureReport: FaceCaptureReportSuccess)
    fun onBiometricFaceCaptureError(faceCaptureReportError: FaceCaptureReportError)
}

enrolment?.biometricFaceCapture(parameters: params, viewController: view) { result in
    switch result {
    case .success(let report):
        print("Face capture successful.")
        completion(.success(()))

    case .failure(let biometricFaceCaptureError):
        if biometricFaceCaptureError.userCanceled {
            print("Face capture cancelled by user.")
            completion(.failure(biometricFaceCaptureError))
        } else {
            print(biometricFaceCaptureError.featureError.publicMessage)
            completion(.failure(biometricFaceCaptureError))
        }
    }
}

Face Capture Report

You will receive a model of the type FaceCaptureReport that will contain the success data.

AndroidiOS

data class FaceCaptureReport(
    val livenessCheckStatus: LivenessCheckStatus,
    val performedTests: List<String>?,
    val biometricHash: String
) : Parcelable

public struct BiometricFaceCaptureReport: Codable {

    /// Contains the list of biometric process tests performed in Orchestra during the biometric face capture process.
    public var performedTests: [CheckLivenessTest]

    /// Contains the list of biometric process tests failed in Orchestra during the biometric face capture process.
    public var failedTests: [CheckLivenessTest]

    /// Flag indicating if liveness check was performed or not during the biometric face capture process.
    public var performedLivenessCheck: Bool

    /// Biometric photo hash
    public var biometricHash: String?

    /// Biometric photo
    public var photo: UIImage?

    public init(photo: UIImage, performedTests: [CheckLivenessTest], failedTests: [String], performedLivenessCheck: Bool, biometricHash: String?)
}

The FaceCaptureReportError has the following structure:

AndroidiOS

data class FaceCaptureReportError(
    val userCanceled: Boolean,
    val featureError: FeatureError?,
    val failedTests: List<String>?,
    val performedTests: List<String>?
)

public class FaceCaptureReportError: Error {
    public var userCanceled: Bool
    public var termsAndConditionsAccepted: Bool
    public var featureError: FeatureError
    public var failedTests: [String]?
    public var performedTests: [String]?
}

The FaceCaptureReportSuccess includes a biometricHash attribute that needs to be included in the Match operation to verify data integrity. It also used when building a Subject.

The failed tests might include one or more of the following tests:

Name	Description
FaceTooFarTest	Error indicating that the face was very far.
FaceTooCloseTest	Error indicating that the face was very close.
FaceNotCenteredTest	Error indicating that the face was not centered.
MultipleFacesDetectedTest	Error indicating that multiple faces were detected in the image.
FaceRotatedTest	Error indicating that the face was rotated in Z angle. A face with a positive Euler Z angle is rotated counter-clockwise relative to the camera.
NoFaceDetectedTest	Error indicating that no face was detected in the picture.
EyesClosedTest	Error indicating that the eyes are closed.
SmilingTest	Error indicating that the user was smiling.
FaceSidewaysTest	Error indicating that the face was rotated in Y angle. A face with a positive Euler Y angle is looking to the right of the camera, or looking to the left if negative.
FaceVerticalTest	Error indicating that the face was rotated in X angle. A face with a positive Euler X angle is facing upward.
MouthOpenTest	Error indicating that the user has the mouth open.
ImageBlurredTest	Error indicating that the image is blurred.
FaceCropFailedTest	Error indicating that the face crop failed.
LivenessCheckQualityTest	Error indicating that the liveness quality test failed.
LivenessCheckProbabilityTest	Error indicating that the liveness probability test failed.

BiometricFaceCaptureCustomViews

The SDK provides default UI solutions for the document reader feature flow, as shown in the following images:

AndroidiOS

@Parcelize
class BiometricFaceCaptureCustomViews(
    val loadingView: Class<out ICustomBiometricFaceCapture.LoadingView>? = null
) : Parcelable

public class EnrolmentViewRegister {
    ...

    public func registerBiometricFaceCaptureLoadingView(_ viewType: FaceCaptureLoadingViewType)
    ...
}

You can use your own custom views in the biometric face capture functionality. Your view must implement the SDK view interfaces. For example, if you want to add a custom loadingView, your view class must implement the ICustomBiometricFaceCapture.LoadingView interface.

In the customization tab you will also find examples to create your own custom views.
