Boarding Pass¶
The boarding pass scan is used to extract encoded information in boarding passes that comply with the BCBP (Bar-Coded Boarding Pass) standard. The SDK is prepared to return the data from boarding passes in the following supported formats:
- Barcode PDF417;
- Aztec;
- QR code;
- DataMatrix.
Additionally, you can submit the boarding pass data to a back-end server platform when creating a subject.
Initiate Scan¶
Another functionality available in the enrolment facade is the bar-coded boarding pass scanning. This is helpful whenever your app needs to extract all encoded information in a printed or digital boarding pass if it was generated according to the international BCBP standard.
The mobile device will be able to scan boarding passes using the back camera. The SDK supports all the available formats in the IATA Bar-Coded Boarding Pass standard: PDF417, Aztec, QR code and DataMatrix. To start the barcode scanner, you must call the following method:
/**
* Scans a Bar Coded Boarding Pass (BCBP).
*
* @param activity [Activity] that will launch the face capture feature
* @param params [BoardingPassScanParameters] required to start the boarding pass scan feature.
* @param onScanBoardingPassCompletion [OnScanBoardingPassCompletion] callback to handle Success and Error scenarios
*/
fun scanBoardingPass(
activity: Activity,
params: BoardingPassScanParameters,
onScanBoardingPassCompletion: OnScanBoardingPassCompletion,
)
func scanBoardingPass(parameters: ScanBoardingPassParameters, viewController: UIViewController, completionHandler: @escaping (Result<BoardingPassFull, BoardingPassError>) -> Void)
The BoardingPassScanParameters has the following structure:
@Parcelize
data class BoardingPassScanParameters(
val validate: Boolean
) : Parcelable
public struct ScanBoardingPassParameters {
public let validateBoardingPass: Bool
public init(validateBoardingPass: Bool)
}
The validate flag should be set to true if you want the SDK to validate the boarding pass data.
If you want to use your own boarding pass scanner, you can also provide the raw result of the scan and pass it to the facade’s parser method. It will return the BoardingPass object. The raw result must be passed to the BoardingPassData, which has to be included in the BoardingPassParserParameters.
From version 7 onwards there is a new way to parse a boarding pass, by giving us an image URI and if the boarding pass is detected in it, it will be parsed and you will receive a BoardingPass object without requiring to provide us the format.
/**
* Parses a Bar Coded Boarding Pass (BCBP).
*
* @param activity [Activity] that will launch the face capture feature
* @param params [BoardingPassStringParserParameters] required to start the boarding pass parser feature.
* @param onParseDocumentCompletion [OnScanBoardingPassCompletion] callback to handle Success and Error scenarios
*/
fun parseBoardingPass(
activity: Activity,
params: BoardingPassStringParserParameters,
onParseDocumentCompletion: OnScanBoardingPassCompletion,
)
/**
* Parses a Bar Coded Boarding Pass (BCBP).
*
* @param activity [Activity] that will launch the face capture feature
* @param params [BoardingPassStringParserParameters] required to start the boarding pass image parser feature.
* @param onParseDocumentCompletion [OnScanBoardingPassCompletion] callback to handle Success and Error scenarios
*/
fun parseBoardingPass(
activity: Activity,
params: BoardingPassImageParserParameters,
onParseDocumentCompletion: OnScanBoardingPassCompletion,
)
func parseBoardingPass(parameters: ParseBoardingPassParameters, viewController: UIViewController, completionHandler: @escaping (Result<BoardingPass, BoardingPassParserError>) -> Void)
The BoardingPassParserParameters object has the following structure:
/**
* Parameters for each [BoardingPass] parser operation.
*
* @param validate if true, it will perform validation of the [BoardingPass] fields.
*/
@Parcelize
open class BoardingPassParserParameters(
open val validate: Boolean
) : Parcelable
/**
* Parameters for each [BoardingPass] parser operation.
*
* @param boardingPassData [BoardingPassData] that will that has the barcode raw data and format to be parsed to a [BoardingPass].
*/
@Parcelize
data class BoardingPassStringParserParameters(
val boardingPassData: BoardingPassData,
override val validate: Boolean
) : BoardingPassParserParameters(
validate
)
/**
* Parameters for each [BoardingPass] parser operation.
*
* @param uri URI to an image file of a [BoardingPass] that will be analyzed and parsed.
*/
@Parcelize
data class BoardingPassImageParserParameters(
val uri: Uri,
override val validate: Boolean
) : BoardingPassParserParameters(
validate
)
public struct ParseBoardingPassParameters {
public let validateBoardingPass: Bool
public let boardingPassData: BoardingPassData
public let boardingPassImage: UIImage?
public init(validateBoardingPass: Bool,
boardingPassData: BoardingPassData,
boardingPassImage: UIImage?)
}
The BoardingPassData is a model where you will have to provide the raw barcode scan result and the barcode format. Below is the model structure:
@Parcelize
data class BoardingPassData(
val rawBarcodeData: String,
val barcodeFormat: BarcodeFormat
) : Parcelable
public struct BoardingPassData {
public let rawBarcodeData: String
public let barcodeFormat: BarcodeFormat
public init(rawBarcodeData: String, barcodeFormat: BarcodeFormat)
}
BarcodeFormat is an enumeration and it contains the following cases.
enum class BarcodeFormat(val value: String) {
AZTEC("AZTECCODE"),
PDF417("PDF417"),
QR_CODE("QR_CODE"),
DATA_MATRIX("DataMatrix")
}
public enum BarcodeFormat: String {
case aztec
case pdf417
case qrCode
case dataMatrix
}
Handle Result¶
You can get the result by registering the callback:
interface OnScanBoardingPassCompletion {
fun onBoardingPassSuccess(boardingPass: BoardingPass)
fun onBoardingPassError(boardingPassError: BoardingPassError)
}
In case of a success, the BoardingPass model will be retuned regardless of how you tried to parse/scan:
The BoardingPassError has the following structure:
data class BoardingPassError(
val userCanceled: Boolean,
val featureError: FeatureError?
)
These method’s completion handler passes a result
let parameters = ScanBoardingPassParameters( validateBoardingPass: preferences.useIataStandards())
self.enrolment.scanBoardingPass(parameters: parameters, viewController: vc) { [weak self] result in
switch result {
case .success(let boardingPass):
// Handle Success
case .failure(let error):
if error.userCanceled {
print("onUserCancel")
} else {
print(error.featureError.publicMessage)
}
}
}
public class BoardingPassError: Error {
public var userCanceled: Bool
public var termsAndConditionsAccepted: Bool
public var featureError: FeatureError
}
In case of success, the BoardingPass has the following structure:
@Parcelize
data class BoardingPass(
val rawBoardingPass: String,
val barcodeType: String,
val expiryDate: Date,
val formatCode: String,
val numberOfLegs: Int,
val passengerName: String,
val electronicTicketIndicator: String,
val beginningOfVersionNumber: String? = null,
val versionNumber: Int? = null,
val passengerDescription: Int? = null,
val checkInSource: String? = null,
val boardingPassSource: String? = null,
val boardingPassDate: String? = null,
val documentType: String? = null,
val boardingPassIssuerDesignator: String? = null,
val baggageTagNumber: String? = null,
val firstNonConsecutiveBaggageTagNumber: String? = null,
val secondNonConsecutiveBaggageTagNumber: String? = null,
val securityDataBeginning: String? = null,
val legs: List<Leg>
) : Parcelable
public struct BoardingPass: Codable {
public let formatCode: String
public let barcodeType: String
public let numberOfLegsEncoded: Int
public let passengerName: String
public let electronicTicketIndicator: String?
public let rawBoardingPass: String
public let expiryDate: Date
public let beginningOfVersionNumber: String?
public let versionNumber: Int?
public let passengerDescription: String?
public let checkInSource: String?
public let boardingPassSource: String?
public let boardingPassDateString: String?
public let documentType: String?
public let boardingPassIssuerDesignator: String?
public let baggageTagNumber: String?
public let firstNonConsecutiveBaggageTagNumber: String?
public let secondNonConsecutiveBaggageTagNumber: String?
public let securityDataBeginning: String?
public let legs: [Leg]
}
The Leg has the following structure:
@Parcelize
data class Leg(
val legOrder: Int,
val operatingCarrierPnrCode: String,
val originAirportCode: String,
val destinationAirportCode: String,
val operatingCarrierDesignator: String,
val flightNumber: String,
val flightDate: String,
val compartmentCode: String,
val seatNumber: String,
val checkInSequenceNumber: String,
val passengerStatus: String,
val airlineNumericCode: String? = null,
val serialNumber: String? = null,
val selecteeIndicator: Int? = null,
val internationalDocumentVerification: Int? = null,
val marketingCarrierDesignator: String? = null,
val frequentFlyerAirlineDesignator: String? = null,
val frequentFlyerNumber: String? = null,
val idAdIndicator: String? = null,
val freeBaggageAllowance: String? = null,
val fastTrack: String? = null
) : Parcelable
public struct Leg: Codable {
public let flightNumber: String?
public let frequentFlyerNumber: String?
public let documentSerialNumber: String?
public let airlineNumericCode: String?
public let passengerStatus: String?
public let sequenceNumber: String?
public let seatNumber: String?
public let compartmentCode: String?
public let flightDate: String?
public let legOrder: Int?
public let carrierDesignator: String?
public let destinationAirport: String?
public let originAirport: String?
public let carrierPnrCode: String?
public let frequentFlyerAirlineDesignator: String?
public let selecteeIndicator: Int?
public let internationalDocumentVerification: Int?
public let marketingCarrierDesignator: String?
public let idAdIndicator: String?
public let freeBaggageAllowance: String?
public let fastTrack: String?
}
Custom Views¶

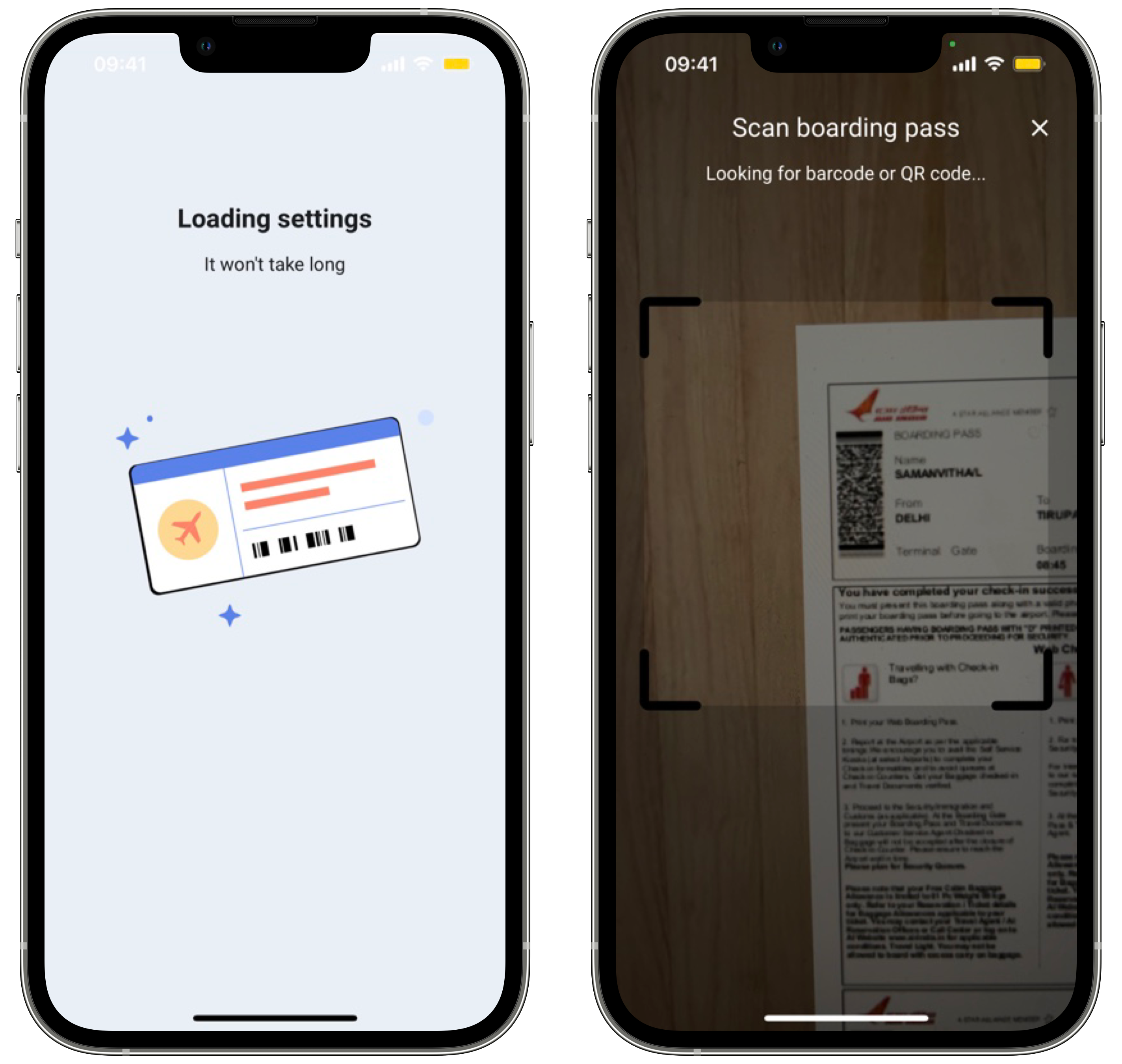

The SDK provides default UI solutions for the boarding pass feature flow, as shown in the following images:
You can also apply your app’s colors and fonts to these layout solutions, to keep your brand’s image consistent. Check Customization tab to learn more about branding of each view.
@Parcelize
class BoardingPassCustomViews(
val loadingView: Class<out ICustomBoardingPass.LoadingView>? = null
) : Parcelable
Our SDK also allows you to pass your own custom views. The only requirement is that your view must implement the SDK view interfaces. For example, if you want to add a custom loading view, your view class must implement the ICustomBoardingPass.LoadingView interface.
public class EnrolmentViewRegister {
...
public func registerBoardingPassScannerLoadingView(_ viewType: BoardingPassLoadingViewType)
...
}
Our SDK also allows you to pass your own custom views. The only requirement is that your view must implement the SDK view protocols. For example, if you want to add a custom loading view, your view class must implement the BoardingPassLoadingViewType.
In the customization tab you will also find examples to create your own custom views.
