Preview View

If the flag showPreview is set to true, then, when the Document is read successfully, the preview view is going to show the details of the document.

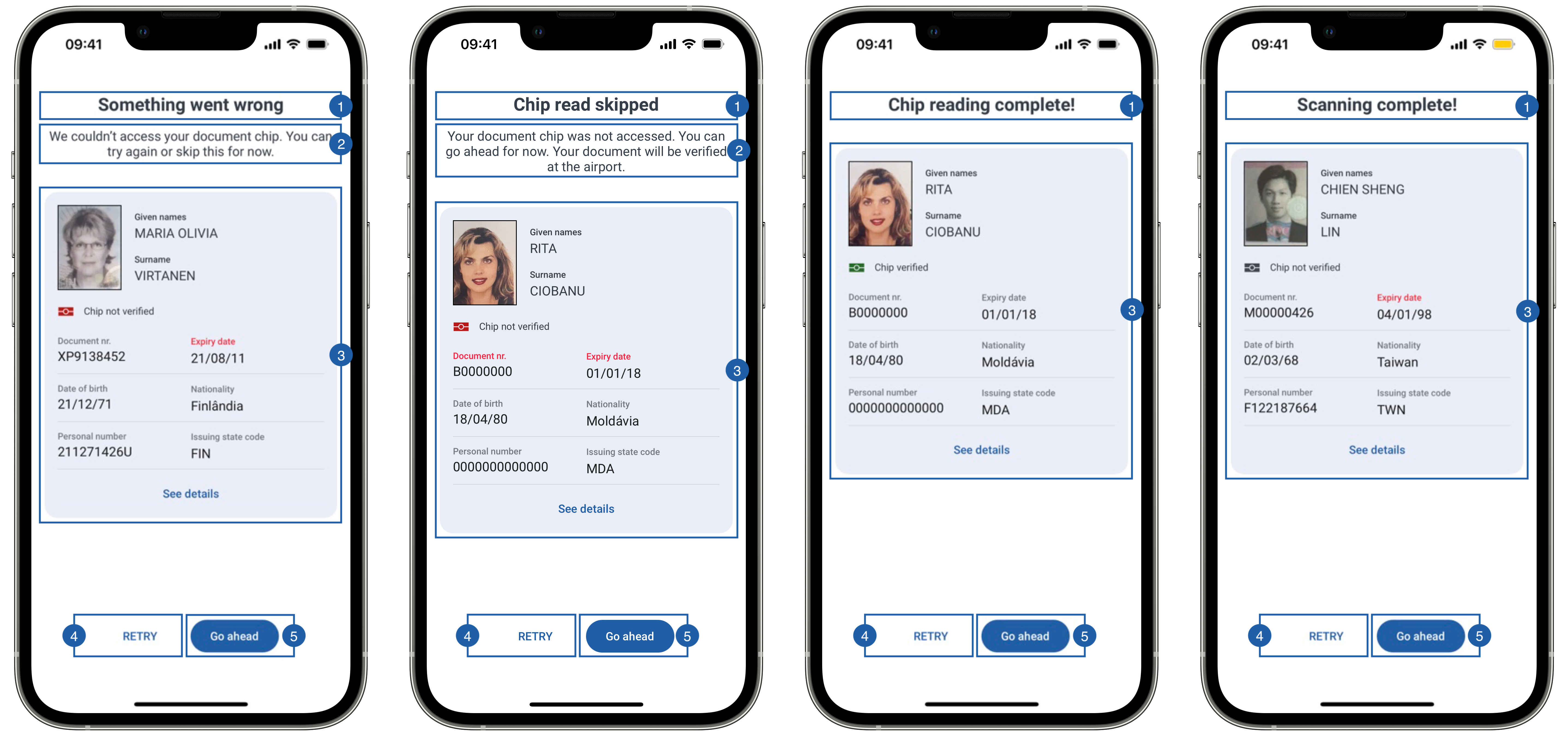

Document Reader Example

This screen can have 4 states, in all of them the OCR reading was successful but the chip can have several states from left to right:

  • Chip reading error
  • User skipped chip reading
  • Successful chip reading (does not have the message label)
  • It is not an e-Document (does not have the message label)

It contains a title(1), a message(2), a subview(3) containing all document information, a retry button(4) to read the document again, a continue button(5) to finish the flow and a background that can be customized.

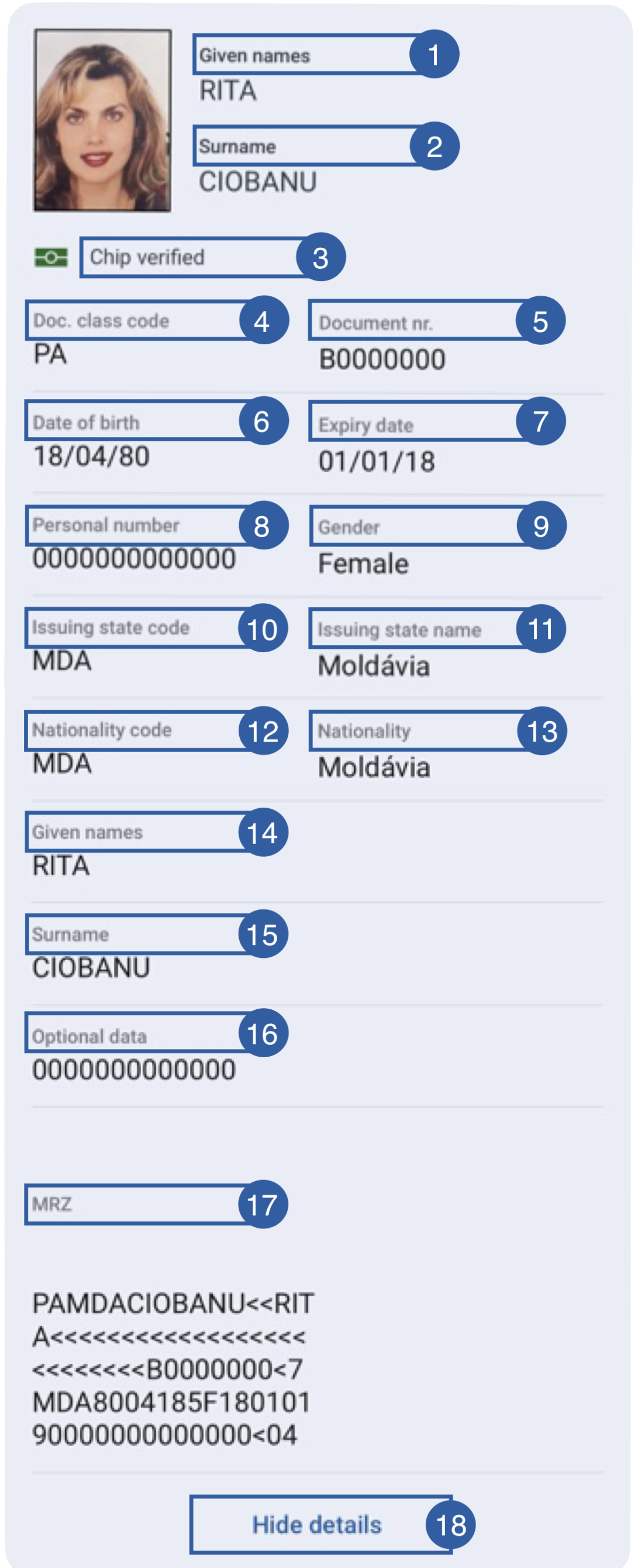

Document Reader Details

The subview is a group that displays all the information collected from the document. It contains multiple labels, and beneath each label, it will be displayed the corresponding information.

  1. Given names
  2. Surname
  3. Chip status
  4. Doc. class code
  5. Document nr.
  6. Date of birth
  7. Expiry date
  8. Personal number
  9. Gender
  10. Issuing state code
  11. Issuing state name
  12. Nationality code
  13. Nationality
  14. Given names
  15. Surname
  16. Optional data
  17. MRZ
  18. See/Hide details button

Branding

You can apply your own branding to our screens by overriding the resources we use.

Text resources

You can add your own texts and localization by overriding the following string resources:

<!-- Document Preview Titles -->
<string name="document_reader_mrzScan_success_title_sdk_enrolment">Scanning complete!</string>
<string name="document_reader_rfid_success_title_sdk_enrolment">Chip read complete!</string>
<string name="document_reader_rfid_skipped_title_sdk_enrolment">Chip read skipped</string>
<string name="document_reader_mrzScan_failure_title_sdk_enrolment">Something went wrong</string>
<!-- Document Data -->
<string name="document_data_field_document_number_sdk_enrolment">Document nr:</string>
<string name="document_data_field_expiry_date_sdk_enrolment">Expiry date:</string>
<string name="document_data_field_date_of_birth_sdk_enrolment">Date of birth:</string>
<string name="document_data_field_nationality_sdk_enrolment">Nationality:</string>
<string name="document_data_field_personal_number_sdk_enrolment">Personal number:</string>
<string name="document_data_field_issuing_state_name_sdk_enrolment">Issuing state name:</string>
<string name="document_data_field_doc_class_code_sdk_enrolment">Doc. class code:</string>
<string name="document_data_field_issuing_state_code_sdk_enrolment">Issuing state code:</string>
<string name="document_data_field_gender_sdk_enrolment">Gender:</string>
<string name="document_data_field_surname_sdk_enrolment">Surname:</string>
<string name="document_data_field_given_names_sdk_enrolment">Given names:</string>
<string name="document_data_field_nationality_code_sdk_enrolment">Nationality code:</string>
<string name="document_data_field_optional_data_sdk_enrolment">Optional data:</string>
<string name="document_data_field_mrz_sdk_enrolment">MRZ:</string>
<string name="document_data_field_sex_and_age_format_sdk_enrolment">%1$s, Age: %2$s</string>
<!-- Buttons -->
<string name="bt_hide_details_sdk_enrolment">Hide details</string>
<string name="bt_see_details_sdk_enrolment">See details</string>
<!-- RFID Status -->
<string name="rfid_read_chip_verified_sdk_enrolment">Chip verified</string>
<string name="rfid_read_chip_not_verified_sdk_enrolment">Chip not verified</string>
<string name="rfid_read_chip_not_available_sdk_enrolment">It seems that this document does not have a chip. Please, check your information below:</string>

The best way to override strings is by adding your key through the Theme class

//Document Preview Titles - It is not an e-Document (does not have the message label)
Theme.shared.strings.documentReader.titleNFCNotSupported

//Document Preview Titles - User skipped chip reading
Theme.shared.strings.documentReader.titleChipSkipped
Theme.shared.strings.documentReader.subtitleChipSkipped

//Document Preview Titles - Successful chip reading (does not have the message label)
Theme.shared.strings.documentReader.titleChipSuccess

//Document Preview Titles - Chip reading error
Theme.shared.strings.documentReader.titleChipError
Theme.shared.strings.documentReader.subtitleChipError

// Document Data
Theme.shared.strings.documentData.surname
Theme.shared.strings.documentData.givenNames
Theme.shared.strings.documentData.docClassCode
Theme.shared.strings.documentData.documentId
Theme.shared.strings.documentData.birthDate
Theme.shared.strings.documentData.expiryDate
Theme.shared.strings.documentData.personalNumber
Theme.shared.strings.documentData.gender
Theme.shared.strings.documentData.issuingStateCode
Theme.shared.strings.documentData.issuingStateName
Theme.shared.strings.documentData.nationalityCode
Theme.shared.strings.documentData.nationality
Theme.shared.strings.documentData.optionalData
Theme.shared.strings.documentData.mrz

//RFID Status
Theme.shared.strings.documentDatachipVerified
Theme.shared.strings.documentDatachipNotVerified
Theme.shared.strings.documentDatachipNotAvailable

//Buttons
Theme.shared.strings.buttons.showDetails
Theme.shared.strings.buttons.retry
Theme.shared.strings.buttons.continue

Colors

You can change the text colors by overriding the following color resource (It affects all texts):

<!-- Titles text color-->
<color name="colorFaceCaptureTxtDarkSdkEnrolment">#1A1C1E</color>
<!-- Form colors-->
<color name="colorDocumentDataFormHeaderTxtSdkEnrolment">#5A7FEB</color>
<color name="colorDocumentDataFormHeaderSeparatorSdkEnrolment">#5A7FEB</color>
<color name="colorDocumentDataFormFieldHeaderTxtSdkEnrolment">#8B8D95</color>
<color name="colorDocumentDataFormFieldTxtSdkEnrolment">#5E646C</color>
<color name="colorDocumentDataFormFieldErrorTxtSdkEnrolment">#D40000</color>
<color name="colorDocumentDataFormSeparatorSdkEnrolment">#979797</color>

You can change the background color of the view or the details card by overriding the following color resources:

<!-- Screen Background color-->
<color name="colorDocumentDataBgSdkEnrolment">#FDFCFF</color>
<!-- Form Background color-->
<color name="colorDocumentPreviewBg">#EAEEF6</color>

You can change the buttons text and background color by overriding the following color resources:

<!-- Continue Button-->
<color name="colorButtonBlueBackgroundTintSdkEnrolment">#1F5FA6</color>
<color name="colorButtonBlueTextSdkEnrolment">@android:color/white</color>
<!-- Retry Button-->
<color name="colorButtonTransparentTextSdkEnrolment">#1F5FA6</color>
<color name="colorButtonTransparentBackgroundTintSdkEnrolment">@android:color/transparent</color>

You can change the text colors by overriding the following color in Theme class

Theme.shared.colors.documentData.title // title(1) and message(2)
Theme.shared.colors.datafield.title //to all
Theme.shared.colors.datafield.value
You can change the background color by overriding the following color in Theme class:
Theme.shared.colors.documentData.background
Theme.shared.colors.common.backgroundCards // card color (It affects other screens)

You can change the color of the retry button(4) (this affects all secondary style buttons)

Theme.shared.colors.button.secondaryBackground
Theme.shared.colors.button.secondaryTitle

You can change the color of the continue button(5) (this affects all primary style buttons)

Theme.shared.colors.button.primaryBackground
Theme.shared.colors.button.primaryTitle

Styles

You can extend the styles we use and override any properties (textColor, textSize, fontFamily, etc...) you want.

<style name="Theme.Sdk.Enrolment.TextView.Dark.Title.Centered">
<style name="Theme.Sdk.Enrolment.TextView.Dark.Subtitle.Centered">
<style name="Theme.Sdk.Enrolment.Button.Blue">
<style name="Theme.Sdk.Enrolment.Button.White">

<!-- Form styles-->
<style name="Theme.Sdk.Enrolment.Form.Field.Header">
<style name="Theme.Sdk.Enrolment.TextView.Regular">
<style name="Theme.Sdk.Enrolment.Form.Field" parent="Theme.Sdk.Enrolment">

<!-- Card style-->
<style name="Theme.Sdk.Enrolment.Card" parent="Theme.Sdk.Enrolment">
Note: It will affect every component that uses the same style.

You can change the font through the theme class (this will affect all text in the app):

Theme.shared.fonts.bold
Theme.shared.fonts.regular
Theme.shared.fonts.medium
