Loading View¶

The only view of the Subject flow is the loading view, appears when the SDK is doing an operation on the subject and communicates it to the server

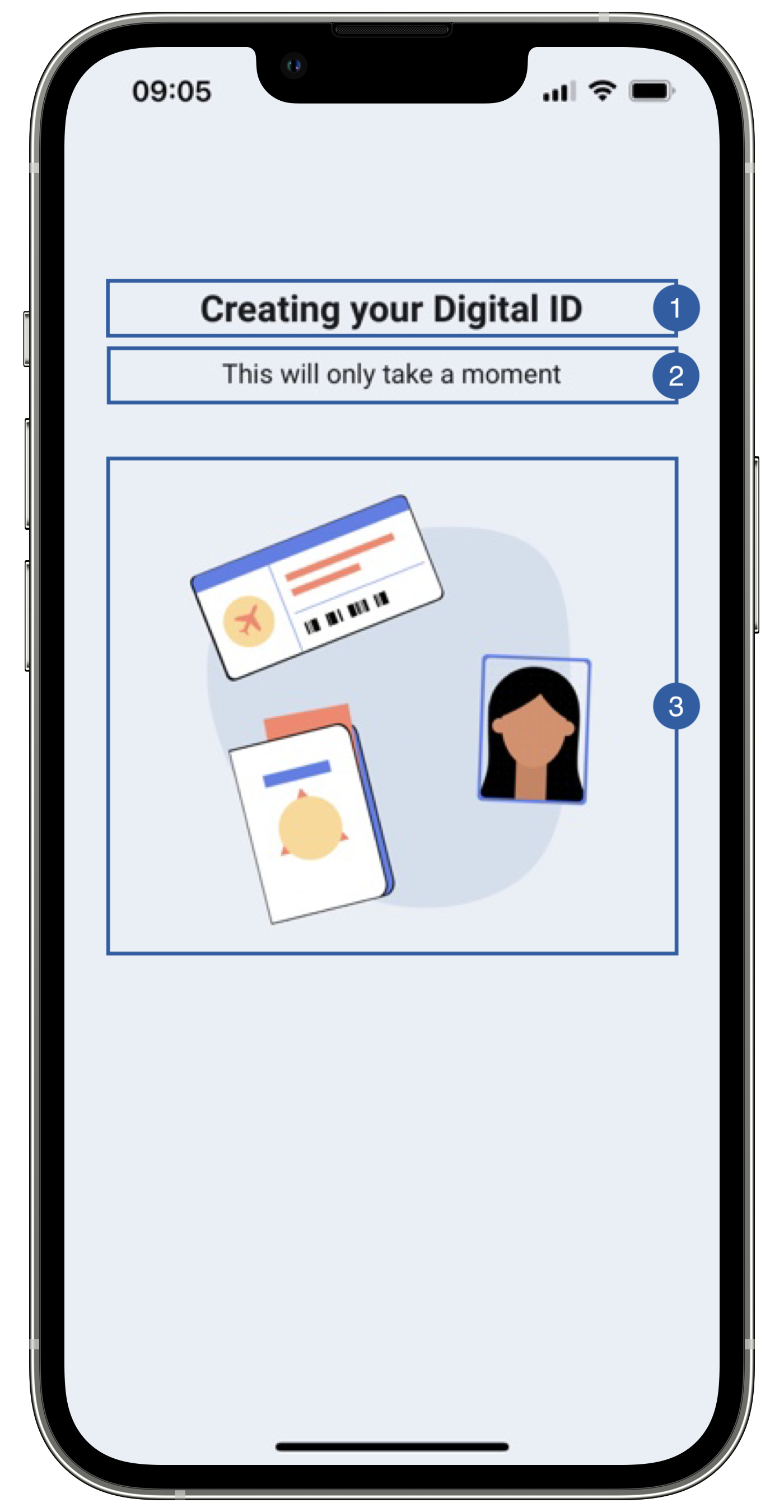

Subject Example

It contains a title(1), a message(2), an image(3) and a background that can be customized.

Branding¶

You can apply your own branding to our screens by overriding the resources we use.

Text resources¶

AndroidiOS

You can add your own texts and localization by overriding the following string resources:

<string name="subject_loading_title_sdk_enrolment">Creating your Digital ID</string>
<string name="subject_adding_subject_sdk_enrolment">Adding subject…</string>
<string name="subject_getting_subject_sdk_enrolment">Getting subject…</string>
<string name="subject_updating_subject_sdk_enrolment">Updating subject…</string>
<string name="subject_deleting_subject_sdk_enrolment">Deleting subject…</string>
<string name="subject_adding_boarding_pass_sdk_enrolment">Adding boarding pass…</string>
<string name="subject_deleting_boarding_pass_sdk_enrolment">Deleting boarding pass…</string>
<string name="common_loading_message_sdk_enrolment">This will only take a moment</string>
<string name="feature_permission_loading_message_sdk_enrolment">Please wait…</string>

The best way to override strings is by adding your key through the Theme class

Theme.shared.strings.subject.addSubjectLoadingTitle
Theme.shared.strings.subject.addSubjectLoadingMessage

Theme.shared.strings.subject.getSubjectLoadingTitle
Theme.shared.strings.subject.getSubjectLoadingMessage

Theme.shared.strings.subject.updateSubjectLoadingTitle
Theme.shared.strings.subject.updateSubjectLoadingMessage

Theme.shared.strings.subject.deleteSubjectLoadingTitle
Theme.shared.strings.subject.deleteSubjectLoadingMessage

Theme.shared.strings.subject.addSubjectBoardingPassLoadingTitle
Theme.shared.strings.subject.addSubjectBoardingPassLoadingMessage

Theme.shared.strings.subject.deleteSubjectBoardingPassLoadingTitle
Theme.shared.strings.subject.deleteSubjectBoardingPassLoadingMessage

Colors¶

AndroidiOS

You can change the text colors by overriding the following color resource (It affects all texts):

<color name="colorFaceCaptureTxtDarkSdkEnrolment">#1A1C1E</color>

You can change the background color by overriding the following color resource:

<color name="colorOverlayFeedbackBgSdkEnrolment">#EAEEF6</color>

You can change the text colors by overriding the following color in Theme class (It affects all Loading Screens):

Theme.shared.colors.checkPermission.title
Theme.shared.colors.checkPermission.subtitle

You can change the background color by overriding the following color in Theme class(It affects all Loading Screens):

Theme.shared.colors.checkPermission.background

Styles¶

AndroidiOS

You can extend the styles we use and override any properties (textColor, textSize, fontFamily, etc...) you want.

<style name="Theme.Sdk.Enrolment.TextView.Dark.Title.Centered">
<style name="Theme.Sdk.Enrolment.TextView.Dark.Subtitle.Centered">

Note: It will affect every component that uses the same style.

You can change the font through the theme class (this will affect all text in the app):

Theme.shared.fonts.bold
Theme.shared.fonts.regular

Image¶

AndroidiOS

You can change the loading animation by adding a raw json animation file with the following name:

loading_subject_sdk_enrolment.json

You can change the loading image by overriding the following image name in Theme class

Theme.shared.animations.subject.loadingCreate

Use your own layouts¶

AndroidiOS

To use your own loading screen for subject feature, you need to implement the MobileID SDK Interface for that view.

In this case: ICustomSubject.LoadingView

interface LoadingView {
    fun onServerCommunication()
    fun onAddingSubject()
    fun onGettingSubject()
    fun onUpdatingSubject()
    fun onDeletingSubject()
    fun onAddingBoardingPass()
    fun onDeletingBoardingPass()
    fun hideLoading()
}

You can use these functions to change loading screen texts, or you can opt to ignore those functions.

For example create a class SubjectLoadingCustomView, create a layout file and bind it.

class SubjectLoadingCustomView (
   context: Context
) : LinearLayoutCompat(context), ICustomSubject.LoadingView {
private var binding: ViewSubjectLoadingBinding

   init {
       binding = ViewSubjectLoadingBinding.inflate(LayoutInflater.from(context), this)
       orientation = VERTICAL
       gravity = Gravity.CENTER
   }

   override fun onServerCommunication() {
       // Do nothing
   }

   override fun onAddingSubject() {
       binding.tvSubjectLoadingTitle.text = "Adding subject"
   }

   override fun onGettingSubject() {
       binding.tvSubjectLoadingTitle.text = "Getting subject"
   }

   override fun onUpdatingSubject() {
       binding.tvSubjectLoadingTitle.text = "Updating subject"
   }

   override fun onDeletingSubject() {
       binding.tvSubjectLoadingTitle.text = "Deleting subject"
   }

   override fun onAddingBoardingPass() {
       binding.tvSubjectLoadingTitle.text = "Adding boarding pass to subject"
   }

   override fun onDeletingBoardingPass() {
       binding.tvSubjectLoadingTitle.text = "Removing subject's boarding pass"
   }

   override fun hideLoading() {
        // Do nothing
   }
}

You need to register a class of type SubjectLoadingViewType through the following function of EnrolmentViewRegister

public func registerSubjectLoadingView(_ viewType: SubjectLoadingViewType)

The SubjectLoadingOverlayViewType class needs to respect the following protocols:

public protocol FeatureLoadingViewInterface {
    func onPreFeatureLoading()
    func onPostFeatureLoading()
    func hideLoading()
}

public typealias FeatureLoadingViewType = FeatureLoadingView.Type
public typealias FeatureLoadingView = UIView & FeatureLoadingViewInterface

public typealias LoadingOverlayViewType = LoadingOverlayView.Type
public typealias LoadingOverlayView = UIView & LoadingOverlayViewInterface

public protocol SubjectLoadingViewInterface: FeatureLoadingViewInterface {
    func onAddingSubject()
    func onGettingSubject()
    func onUpdatingSubject()
    func onDeletingSubjec()
    func onAddingBoardingPass()
    func onDeletingBoardingPass()
}

public typealias SubjectLoadingViewType = SubjectLoadingView.Type
public typealias SubjectLoadingView = UIView & SubjectLoadingViewInterface

Example:

class LoadingView: SubjectLoadingView {
// MARK: - Initialization

    override init(frame: CGRect) {
        super.init(frame: frame)
        //add any UI customization you need
    }

// MARK: - Functions

    func onPreFeatureLoading() {
        //add any UI customization you need
    }

    func onPostFeatureLoading() {
        //add any UI customization you need
    }

    func hideLoading() {
        //You can stop animations or other activities that consumes resources
    }

    func onAddingSubject() {
        //add any UI customization you need
    }

    func onGettingSubject() {
        //add any UI customization you need
    }

    func onUpdatingSubject() {
        //add any UI customization you need
    }

    func onDeletingSubjec() {
        //add any UI customization you need
    }

    func onAddingBoardingPass() {
        //add any UI customization you need
    }

    func onDeletingBoardingPass() {
        //add any UI customization you need
    }
}
