Scan View¶

The camera screen is no longer a custom view in order to allow us to better control the user flow. You can still apply any branding you want to the screen and change the frame format by using our FaceCaptureFrameFormat enum in the feature parameters.

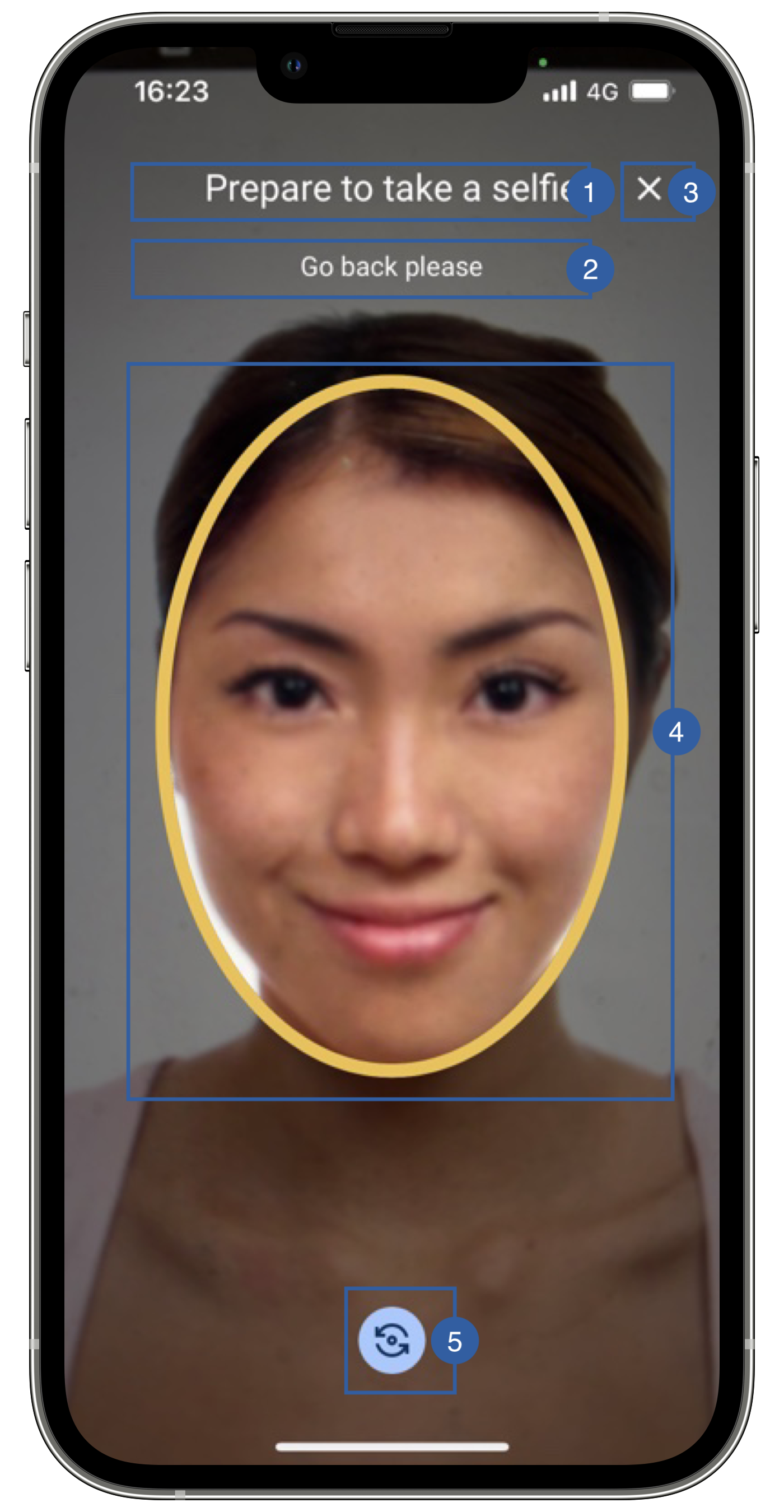

Biometric Face Capture Example

It contains a title(1), a message(2), a cancel button(3), a frame(4) and a rotate camera button(5).

Branding¶

You can apply your own branding to our screens by overriding the resources we use.

Text resources¶

AndroidiOS

You can add your own texts and localization by overriding the following string resources:

<!-- Default messages-->
<string name="face_capture_no_face_title_sdk_enrolment">Let\'s frame your face…</string>
<string name="face_capture_no_face_subtitle_sdk_enrolment">Stand still, please</string>

<!-- Possible title messages-->
<string name="face_capture_processing_title_sdk_enrolment">Just a moment…</string>
<string name="face_capture_mouth_open_title_sdk_enrolment">Prepare to take a selfie</string>
<string name="face_capture_invalid_rotation_title_sdk_enrolment">Prepare to take a selfie</string>
<string name="face_capture_invalid_verticalness_title_sdk_enrolment">Prepare to take a selfie</string>
<string name="face_capture_too_far_title_sdk_enrolment">Prepare to take a selfie</string>
<string name="face_capture_too_close_title_sdk_enrolment">Prepare to take a selfie</string>
<string name="face_capture_not_centered_title_sdk_enrolment">Prepare to take a selfie</string>
<string name="face_capture_multiple_faces_detected_title_sdk_enrolment">Prepare to take a selfie</string>
<string name="face_capture_no_face_title_sdk_enrolment">Let\'s frame your face…</string>
<string name="face_capture_eyes_closed_title_sdk_enrolment">Prepare to take a selfie</string>
<string name="face_capture_smiling_title_sdk_enrolment">Prepare to take a selfie</string>
<string name="face_capture_face_sideways_title_sdk_enrolment">Prepare to take a selfie</string>

<!-- Possible subtitle messages-->
<string name="face_capture_processing_subtitle_sdk_enrolment">Processing Photo</string>
<string name="face_capture_mouth_open_subtitle_sdk_enrolment">Close your mouth</string>
<string name="face_capture_invalid_rotation_subtitle_sdk_enrolment">Straighten your head</string>
<string name="face_capture_invalid_verticalness_subtitle_sdk_enrolment">Don\'t look up/down</string>
<string name="face_capture_too_far_subtitle_sdk_enrolment">Approximate please</string>
<string name="face_capture_too_close_subtitle_sdk_enrolment">Go back please</string>
<string name="face_capture_not_centered_subtitle_sdk_enrolment">Center your head</string>
<string name="face_capture_multiple_faces_detected_subtitle_sdk_enrolment">Multiple faces detected</string>
<string name="face_capture_ready_subtitle_sdk_enrolment">One moment, please</string>
<string name="face_capture_eyes_closed_subtitle_sdk_enrolment">Open your eyes please</string>
<string name="face_capture_smiling_subtitle_sdk_enrolment">Keep a straight face</string>
<string name="face_capture_face_sideways_subtitle_sdk_enrolment">Look to the camera</string>

The best way to override strings is by adding your key through the Theme class

//Possible title messages
Theme.shared.strings.faceCapture.titleNoFace.localized()
Theme.shared.strings.faceCapture.titleCountDown.localized()
Theme.shared.strings.faceCapture.titleDone.localized()
Theme.shared.strings.faceCapture.title.localized()


//Possible subtitle messages
Theme.shared.strings.faceCapture.info.localized()
Theme.shared.strings.faceCapture.infoCountDown.localized()
Theme.shared.strings.faceCapture.noFaceDetected.localized()
Theme.shared.strings.faceCapture.turnedHead.localized()
Theme.shared.strings.faceCapture.closedEyes.localized()
Theme.shared.strings.faceCapture.smiling.localized()
Theme.shared.strings.faceCapture.openMouth.localized()
Theme.shared.strings.faceCapture.headOffCenter.localized()
Theme.shared.strings.faceCapture.tooClose.localized()
Theme.shared.strings.faceCapture.tooFar.localized()
Theme.shared.strings.faceCapture.ready.localized()
Theme.shared.strings.faceCapture.multipleFaces.localized()
Theme.shared.strings.faceCapture.darkGlasses.localized()
Theme.shared.strings.faceCapture.lowFaceQuality.localized()
Theme.shared.strings.faceCapture.imageBlurredError.localized()

Colors¶

AndroidiOS

You can change the text colors by overriding the following color resource (It affects all texts):

<color name="colorFaceCaptureTxtLightSdkEnrolment">#DFFFFFFF</color>

<!-- Rotate camera button -->
<color name="colorFaceCaptureButtonStrokeSdkEnrolment">#FFFFFF</color>
<color name="colorFaceCaptureButtonBgSdkEnrolment">#CFD8DC</color>

You can change the text colors by overriding the following color in Theme class

Theme.shared.colors.faceCapture.title
Theme.shared.colors.faceCapture.stateLabel

You can change the frame colors by overriding the following color in Theme class

Theme.shared.colors.common.black
Theme.shared.colors.faceCapture.stateError
Theme.shared.colors.faceCapture.stateValid

You can change the mask and flash colors by overriding the following color in Theme class

Theme.shared.colors.component.transparentOverlay
Theme.shared.colors.faceCapture.flash

You can change the rotate camera button colors by overriding the following color in Theme class

Theme.shared.colors.faceCapture.cameraSwitchButtonImageTint
Theme.shared.colors.faceCapture.cameraSwitchButtonBackground

Styles¶

AndroidiOS

You can extend the styles we use and override any properties (textColor, textSize, fontFamily, etc...) you want.

<style name="Theme.Sdk.Enrolment.TextView.Light.Title.Centered">
<style name="Theme.Sdk.Enrolment.TextView.Light.Subtitle.Centered">
<style name="Theme.Sdk.Enrolment.ButtonCancel">
<style name="Theme.Sdk.Enrolment.Face.Capture.Button">

Note: It will affect every component that uses the same style.

You can change the font through the theme class (this will affect all text in the app):

Theme.shared.fonts.regular

Image¶

AndroidiOS

You can change the icon of the rotate camera button by adding a drawable with this name:

ic_flip_camera.xml

The image we are using is 48x48dp.

You can change the icon of the cancel button by adding a drawable with this name:

ic_cancel_sdk_enrolment.xml

The image we are using is 24x24dp.

You can change the icon of the cancel button by overriding the following image in Theme class

Theme.shared.images.buttons.closeButton

You can change the icon of the rotate camera button by overriding the following image in Theme class

Theme.shared.images.faceCapture.toggleCameraButton
