Loading View¶

The first view of the document reader flow is the loading view, it appears when the feature is initializing. In this step, if the regula database is not yet downloaded or it's outdated, the download will begin automatically.

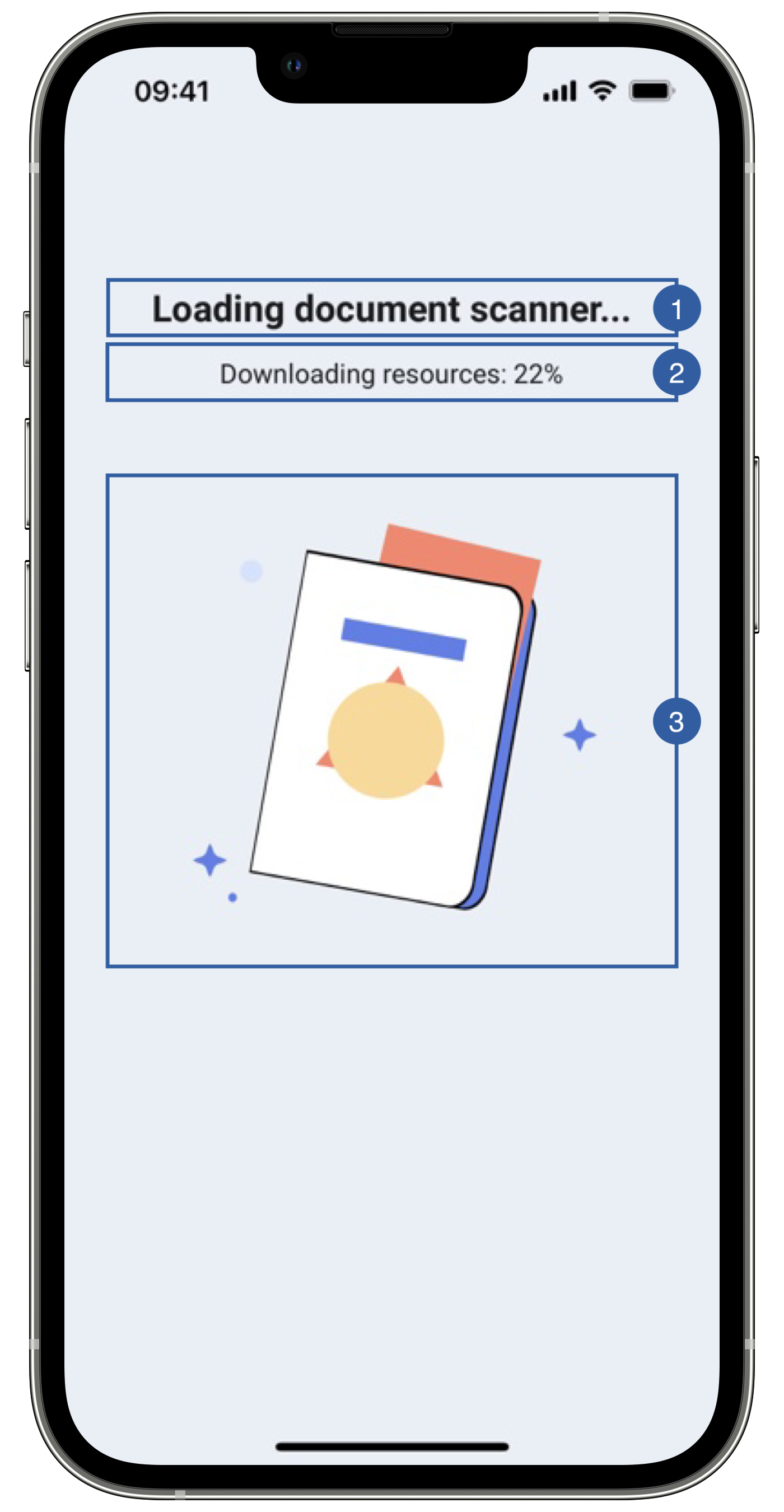

Document Reader Example

It contains a title(1), a message(2), an animation(3) and a background that can be customized.

Branding¶

You can apply your own branding to our screens by overriding the resources we use.

Text resources¶

AndroidiOS

You can add your own texts and localization by overriding the following string resources:

<string name="document_reader_loading_overlay_title_sdk_enrolment">Loading Document Reader</string>
<string name="document_reader_initializing_overlay_message_sdk_enrolment">This may take a moment</string>
<!-- In case the regula database needs to be downloaded we show the progress in text -->
<string name="document_read_reader_download_progress_sdk_enrolment">Downloading resources: %d%%</string>
<!-- When the feature is ready to start we display this message in the subtitle -->
<string name="document_reader_loading_overlay_subtitle_sdk_enrolment">We\'ll first take a picture of your document</string>

The best way to override strings is by adding your key through the Theme class

Theme.shared.strings.documentReader.initialization
Theme.shared.strings.documentReader.initializationSubtitle
Theme.shared.strings.documentReaderdownloadProgress

Colors¶

AndroidiOS

You can change the text colors by overriding the following color resource (It affects all texts):

<color name="colorFaceCaptureTxtDarkSdkEnrolment">#1A1C1E</color>

You can change the background color by overriding the following color resource:

<color name="colorOverlayFeedbackBgSdkEnrolment">#EAEEF6</color>

You can change the text colors by overriding the following color in Theme class (It affects all Loading Screens):

Theme.shared.colors.checkPermission.title
Theme.shared.colors.checkPermission.subtitle

You can change the background color by overriding the following color in Theme class(It affects all Loading Screens):

Theme.shared.colors.checkPermission.background

Styles¶

AndroidiOS

You can extend the styles we use and override any properties (textColor, textSize, fontFamily, etc...) you want.

<style name="Theme.Sdk.Enrolment.TextView.Dark.Title.Centered">
<style name="Theme.Sdk.Enrolment.TextView.Dark.Subtitle.Centered">

Note: It will affect every component that uses the same style.

You can change the font through the theme class (this will affect all text in the app):

Theme.shared.fonts.bold
Theme.shared.fonts.regular

Animation¶

AndroidiOS

You can change the loading animation by adding a raw json animation file with this name:

loading_document_reader_sdk_enrolment.json

You can change the loading animation by adding a raw json animation file and overriding the following animation name in Theme class

Theme.shared.animations.documentReader.loadingDocuments

Use your own layouts¶

AndroidiOS

To use your own loading screen for document reader feature, you need to implement the MobileID SDK Interface for that view.

In this case: ICustomDocumentReader.LoadingView

interface LoadingView {
    fun onPreFeatureLoading(message: String)
    fun onPostFeatureLoading()
    fun onDownloadProgressChanged(progress: Int)
    fun hideLoading()
}

In this screen, the loading time can deppend on the status of the database and wether it's the first feature to be called or not. Due to this, we have 4 methods were you can update the messages being displayed in the loading screen, or you can opt to ignore those functions.

onPreFeatureLoading is called multiple times, with different messages that display what is happening while initializing the feature. onPostFeatureLoading is called when the transaction is being registered. onDownloadProgressChanged is called when the database download is in progress so you can share the progress with the user. hideLoading is called when the view is dismissed.

For example create a class DocumentReaderLoadingCustomView, create a layout file and bind it.

class DocumentReaderLoadingCustomView(
context: Context
) : ConstraintLayout(context), ICustomDocumentReader.LoadingView {
private var binding: ViewDocumentReaderLoadingBinding

    init {
        binding = ViewDocumentReaderLoadingBinding.inflate(LayoutInflater.from(context), this)
    }

    override fun onPreFeatureLoading(message: String) {
        binding.documentReadLoadingMessage.text = message
    }

    override fun onPostFeatureLoading() {
        binding.documentReadLoadingTitle.text = "Communicating"
        binding.documentReadLoadingMessage.text = ""
    }

    override fun onDownloadProgressChanged(progress: Int) {
        binding.documentReadLoadingMessage.text = "Progress: $progress%"
    }

    override fun hideLoading() {
        // Do nothing
    }
}

You need to register a class of type DocumentReaderLoadingViewType through the following function of EnrolmentViewRegister

public func registerDocumentReaderLoadingView(_ viewType: DocumentReaderLoadingViewType)

The DocumentReaderLoadingViewType class needs to respect the following protocols:

public protocol FeatureLoadingViewInterface {
    func onPreFeatureLoading()
    func onPostFeatureLoading()
    func hideLoading()
}

public typealias FeatureLoadingViewType = FeatureLoadingView.Type
public typealias FeatureLoadingView = UIView & FeatureLoadingViewInterface

public protocol DocumentReaderLoadingViewInterface: FeatureLoadingView {
    func onDownloadProgressChanged(progress: Int)
    func onPreparingFeature()
}

public typealias DocumentReaderLoadingViewType = DocumentReaderLoadingView.Type
public typealias DocumentReaderLoadingView = UIView & DocumentReaderLoadingViewInterface

Example:

class LoadingView: DocumentReaderLoadingView {

    // MARK: - Initialization

    override init(frame: CGRect) {
        super.init(frame: frame)
        //add any UI customization you need
    }

    // MARK: - Functions

    func onDownloadProgressChanged(progress: Int) {
        //add any UI customization you need
    }

    func onPreparingFeature() {
        //add any UI customization you need
    }

    func onPreFeatureLoading() {
        //add any UI customization you need
    }

    func onPostFeatureLoading() {
        //add any UI customization you need
    }

    func hideLoading() {
        //You can stop animations or other activities that consumes resources
    }
}
