Scan View

The second view of the Boarding pass flow is the scan view, it's the camera screen that detects the boarding pass barcode.

Boarding Pass Example

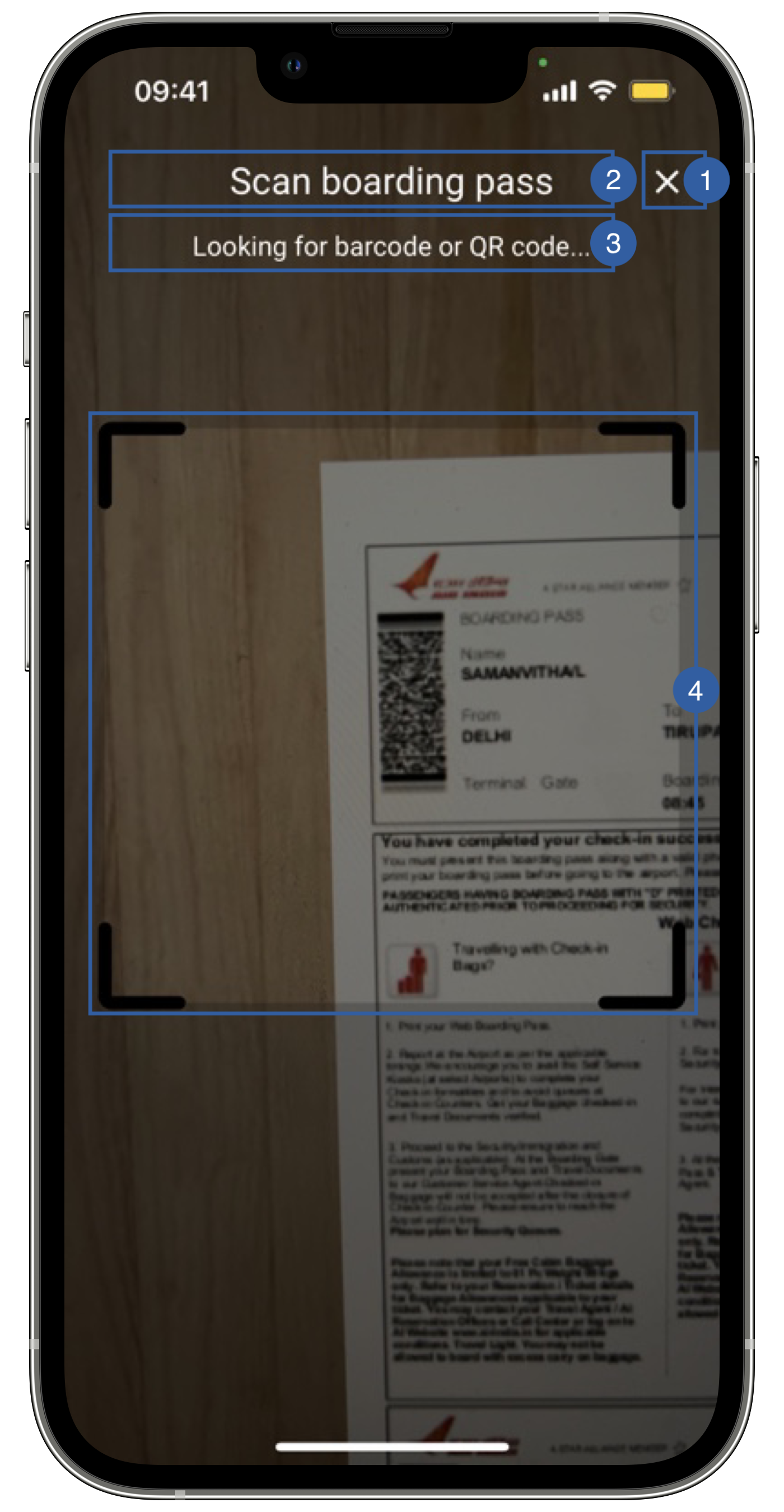

It contains a cancel button (1), a title(2), a message(3) and a frame(4) that can be customized.

Branding

You can apply your own branding to our screens by overriding the resources we use.

Text resources

You can add your own texts and localization by overriding the following string resources

<string name="boarding_pass_loading_bt_scan_sdk_enrolment">Scan boarding pass</string> <!--Title -->
<string name="boarding_pass_scan_subtitle_sdk_enrolment">Looking for barcode or QR code…</string> <!-- Subtitle -->

The best way to override strings is by adding your key through the Theme class

Theme.shared.strings.boardingPassScan.scanTilte
Theme.shared.strings.boardingPassScan.scanSubtilte

Colors

You can change the text colors by overriding the following color resource (It affects all texts)

<color name="colorFaceCaptureTxtLightSdkEnrolment">#DFFFFFFF</color>

You can change the background color by overriding the following color resource

<color name="colorBarcodeScanBgSdkEnrolment">#000000</color>

You can change the text colors by overriding the following color in Theme class(affects both title and subtitle):

Theme.shared.colors.boardingPassScan.title
You can change the color of the mask (also affects BiometricFaceCapture):
Theme.shared.colors.component.transparentOverlay
You can change the color of the frame (also affects Face Capture and Document Reader)
Theme.shared.colors.common.black

Styles

You can extend the style we use and override any properties (textColor, textSize, fontFamily, etc...) you want.

<style name="Theme.Sdk.Enrolment.TextView.Dark.Title.Centered">
<style name="Theme.Sdk.Enrolment.TextView.Dark.Subtitle.Centered">
Note: It will affect every component that uses the same style.

You can change the font through the theme class (this will affect all text in the app):

Theme.shared.fonts.regular

Images

You can change the cancel button icon by adding a drawable with this name:

ic_cancel_sdk_enrolment.xml
The image we are using is 24x24dp

You can change the frame by adding a drawable with this name:

barcode_scan_mask_sdk_enrolment.xml
The image we are using is 320x320dp

You can change the image by adding a asset file and overriding the following image name in Theme class

Theme.shared.images.buttons.closeButton // It affects all close buttons
